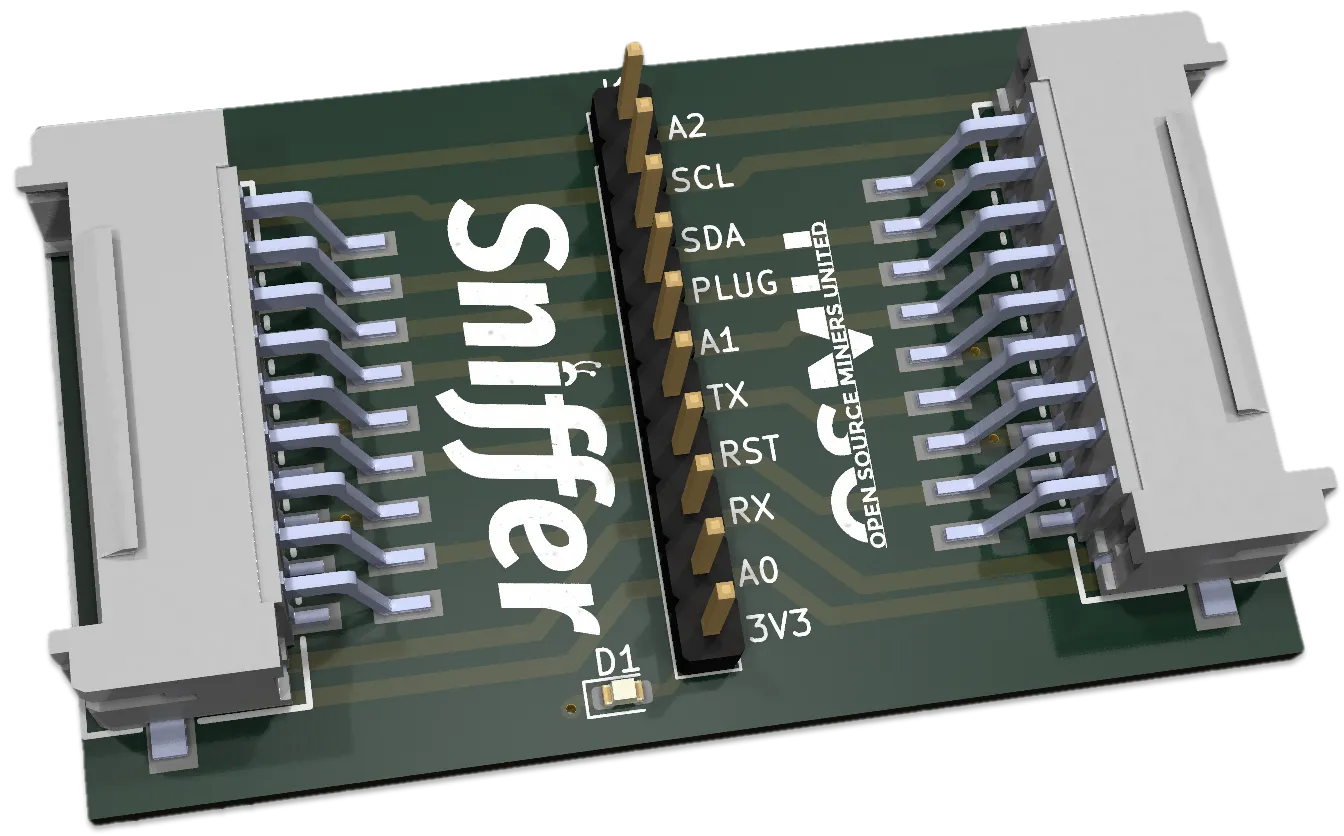

This device is used to tap into the signals on an Antminer data cable for logic analyzers and other development purposes. The base design is a 2 layer PCB, with 2 SMD connectors that are compatible with Antminer 18 pin data cables. These cables are used for plugging in the hashboard to the control board. All data connections are broken out into a pin header with labels for their functions. Also included are two switches. These switches reset the control board, and reset the plug state of the miner. render of the antsniffer
