The BM1368
The BM1368 is an undocumented SHA256 mining ASIC from Bitmain. It’s mostly used in the Antminer S21.
Hashrate
Section titled “Hashrate”The nominal hashrate of the BM1368 is between 600~750GH/s.
| Price | New: ~$25 Used: ~$15 in small quantities |
| Efficiency | ~18J/TH |
| Serial Protocol | UART |
| Baudrate | - |
| Footprint | - |

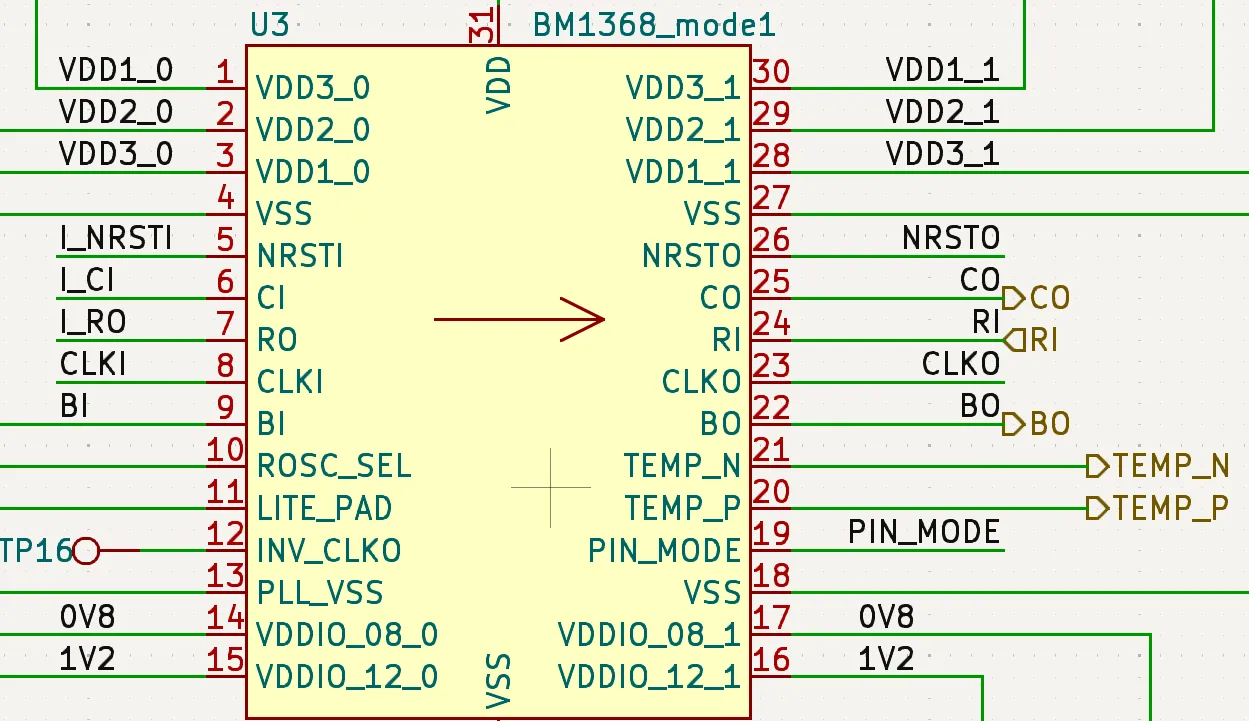

Pinout
Section titled “Pinout”
| Pinout | Explanation |
|---|---|
| VDD1_0 | Internal voltage domain 1. (for bypass capacitors) |
| VDD2_0 | Internal voltage domain 2. (for bypass capacitors) |
| VDD3_0 | Internal voltage domain 3. (for bypass capacitors) |
| VSS | Ground |
| NRSTI | Reset input |
| BI | Busy Input |
| RO | Serial Response Output |
| CLKI | Clock Input |
| CI | Serial Command Input |
| ADDR0 | Address 0 (unknown functionality) |
| ADDR1 | Address 1 (unknown functionality) |
| PLL_VSS | Phase Locked Loop Ground |
| VDDIO_08_0 | 0.8V IO voltage |
| VDDIO_18_0 | 1.8V IO voltage (this is normally 1.2V now) |
| VDD1_1 | Internal voltage domain 1. (for bypass capacitors) |
| VDD2_1 | Internal voltage domain 2. (for bypass capacitors) |
| VDD3_1 | Internal voltage domain 3. (for bypass capacitors) |
| VSS | Ground |
| NRST0 | Reset Output |
| BO | Busy Output |
| RI | Serial Response Input |
| CLK0 | Clock output |
| TEMP_P | Temperature postitive diode side |
| TEMP_N | Temperature negative diode side |
| CO | Serial Command Output |
| INV_CLK0 | Inverted Clock Output (unknown use) |
| PIN_MODE | Pin mode selector |
| VSS | Ground |
| VDI0_08_1 | 0.8V IO voltage |
| VSI0_08_1 | 1.8V IO voltage (this is normally 1.2V now) |
Versions
Section titled “Versions”It has multiple versions.
